• Electric Motor : 11 kW ( 3phase, 380v, 60Hz)
• Weight of machine : 13.5 ton
• Machine dimension (LxWxH) : 14 × 1.4 × 1.5 (m)
• Station quantity : 33

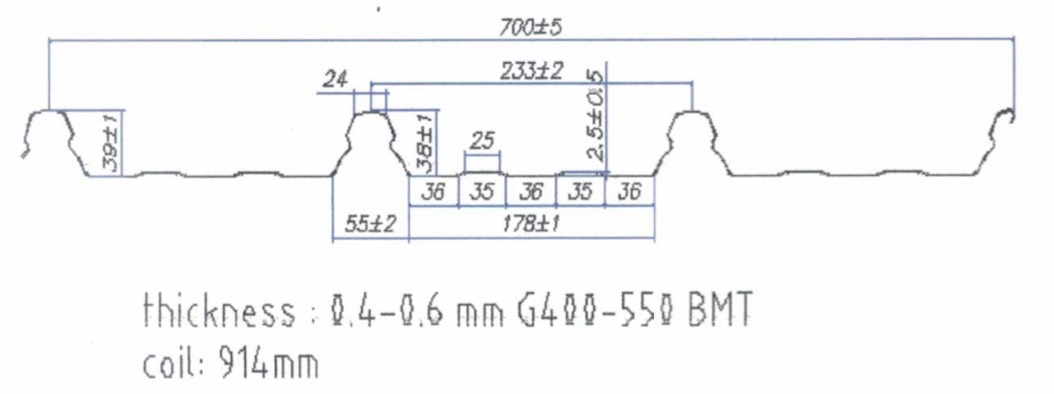

• Thickness of steel : 0.4-0.6 BMT , G300-G500
• Material : MS , PI ,PPGI (galvanized , color coating steel)
• Control system of machine : PLC full automatic programmable, cutting hydraulic
• Rolling transmission : Speed driver by inverter, Motor hydraulic
• Rolling speed : 18 – 20 m/min
• Coil width : 914mm
• Cutting die-set : SKD11 steel vacuum heart-treat hardness 52-55 HRC
• Shaft : Ø75
• Steel frame and wall : 1500 : 22mm
• Roller : S45C steel vacuum heart-treat hardness 48-50 HRC
• Chain : 100+120
