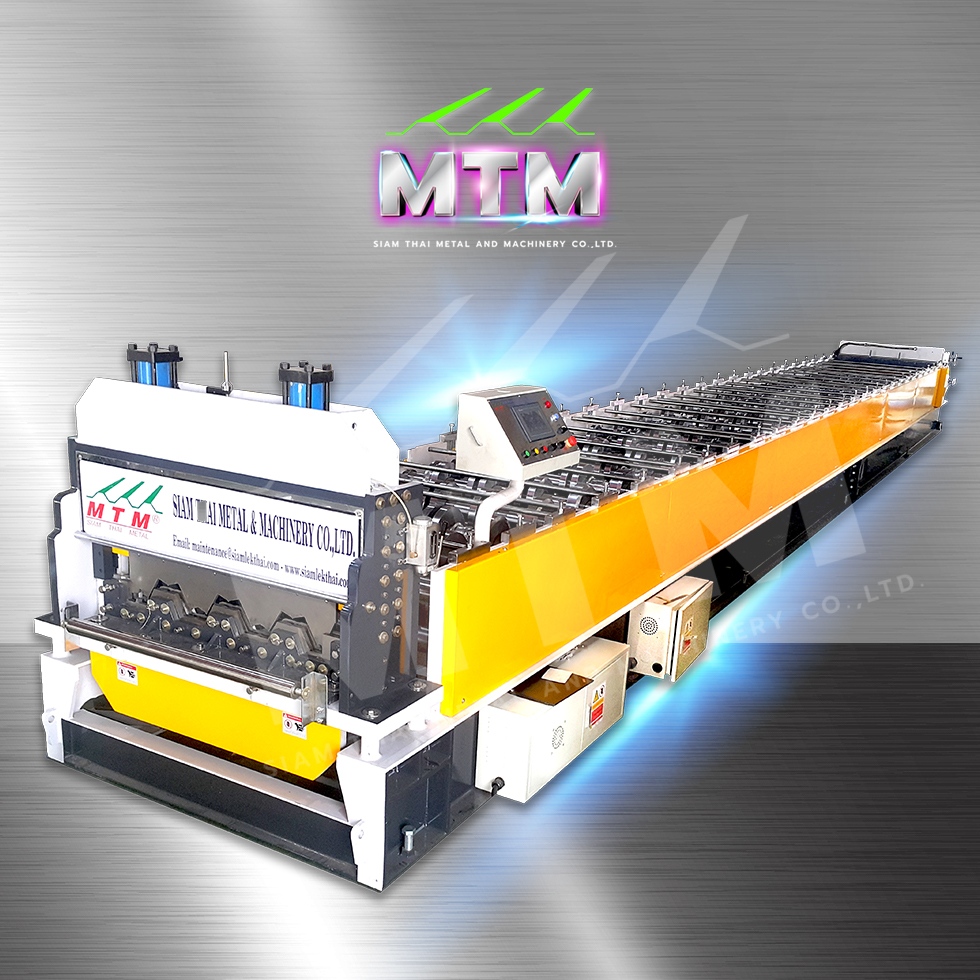

DECKING FLOOR MACHINEเครื่องรีดพื้นเด้กกิ้งฟลอ

DECKING FLOOR MACHINE
เครื่องรีดพื้นเด้กกิ้งฟลอ

In Stock

Machine dimension (L x W x H)
– (L x W x H) : 1.5 x 1.6 x 1.2 m
– weight of machine 20 ton
The handle methode
– diameter shaft are made from s45c
– the machine have 27 axis pair.
– rolling material thickness : o.7-1.4 mm.
– material width : 1220-1250 (g350-g450 mpa)
– thick-wall machine 25mm.
– rolling speed : 1o -> 14 m/min.
Electric power
– electric power : 20.5<w
– electric motor : 7:5 hp toshiba
– hydraulic pump yuken 53cc (taiwan)
– hydraulic vaives yuken 04 (taiwan)
– running speed-reducer motor iohp : 2 pcs,controlling by inverter
– chain roller china : 120,140
Control system of machine
– plc, fully automatic programmable
– using plc siemens.
– touch screen.
– self signaling tole cut tail end of the process
– automatically run during
– cb : fuji – mitsubishi
– rellay : omron
– button : korea.
– encoder : omron
